StandardRange: Airmovers:
Group: Standard Fixed Gap
Product: AM10

Technical details.

<< Back

Material: Zinc alloy
Weight: 0.100Kg
Standard Gap: 0.05mm
DBA at: 5.5 bar is 72
Shims: 0.04, 0.05, 0.08mm
Optional Extra
Standard Inlet Threads: 1/8" BSP
Options: 1/8 NTP
Please specify on order 1/8" NPTF
Bar Vol in m³ /min Vol out m³ /min
1.38 0.048 0.49
2.76 0.065 0.06
4.14 0.125 0.733
5.52 0.164 0.886

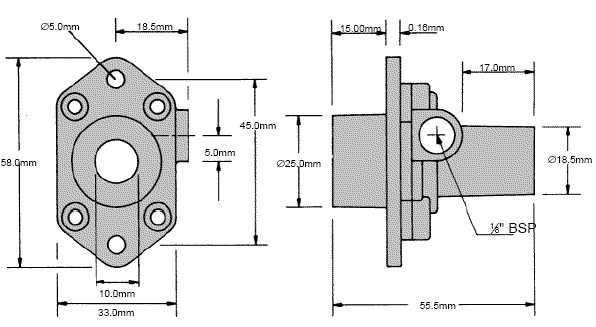

am10
