Range: Castor:
Group : - Max Load

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back
Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
BG

All wheels can be supplied with alternative taper roller bearings on request.
100% tested. Humidity proof polyurethane compounds. All wheels supplied with precision ball bearing.
MATERIAL: Wheel centre - Precision machined cast iron Tyre - Heavy Duty Premium Polyurethane
BRACKET: Single piece hot forged alloy steel top plate with integrally forged kingpin.
Alloy steel yoke base. Precision CNC machined raceways. Option of computer controlled induction hardened raceways. 6mm thick fork legs robotically welded inside and outside. 12mm Axle.

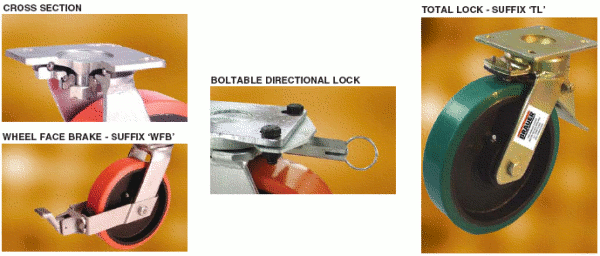

4 position directional lock slots
Top Plate (ISO 2184 Class 3) 138 x 110mm
Bolt Hole Spacing 105 x 75-80mm
Bolt Hole Diameter 10mm
