SFTRange: Wheel & Axle:
Group: Steel
Style: Flat Tread - (SFT)

Click on Product Group code to view Bearing options and full Part Numbers.

<< Back

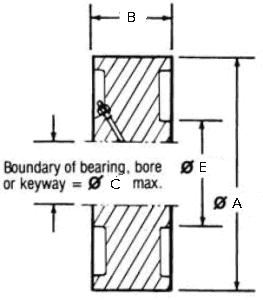

Product GroupTread Ø mm(A)Tread Width mm(B)Max Bore mm(C)Flange Ø mm(D)Hub Ø mm(E)Hub Width mm(F)Overall Width mm(G)Load KgWeight Kg
SFT75/60756050----23002
SFT100/601006075----31003.5
SFT150/8015080100----620010
SFT200/9020090150----930022
SFT225/100225100150----1160030
SFT250/100250100125-178--1290037
SFT300/100300100125-178--1540054
SFT350/110350110150-202--1990080
SFT450/125450125150-200--29000150
SFT600/150600150150-250--46300325
Steel

While unflanged wheels can be used to run on surfaces such as concrete or steel plate, their most common application is paired with a double flanged wheel, the flanged wheel providing guidance and the unflanged wheel allowing a wide tolerance in the pitch of the rails.
MATERIAL: Steel to BS970: 1983: 080M40
OPERATING TEMPERATURE RANGE:
Plain bored or keywayed wheels - 30ºC to 350ºC
Ball or taper roller bearinged wheels - 30ºC to 120ºC
The ´maximum load rating´ given for each wheel is based on the full tread width being in contact with the rail. Working loads must be calculated based on the useable rail width and operating conditions - see ´Design Data´ paras. 5.1 and 5.3.
Alternative bore/bearing diameters and alternative bearing types (i.e. bronze bushes, self-lubricating bushes, roller bearings, spherical roller bearings, etc.) are available to order - see ´Design Data´ para. 6.0.
Plain bore wheels are not drilled and tapped for greasing unless requested at time of order.
