TWG SeriesRange: Castor:
Group : TWG Series - Max Load (3000kg)

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

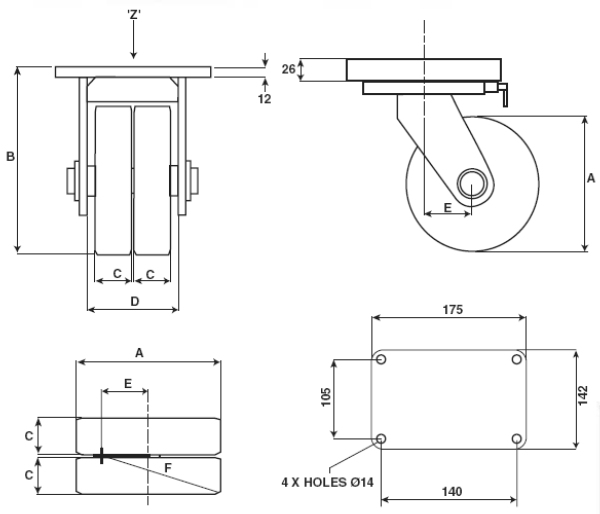

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
TWGS/H150/35TBSwivel150220351311200TB15

H150/35
TWGF/H150/35TBFixed15022035n/a1200TB15

H150/35
TWG

Directional locks are standard on TWG series castors.
For technical information covering load factors, etc., see Design Data
