StandardRange: Airmovers:
Group: Standard Adjustable Gap
Product: AM125A

Technical details.

<< Back

Material: Aluminium alloy
Weight: 5.6Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 85
Shims: Not applicable
Optional Extra

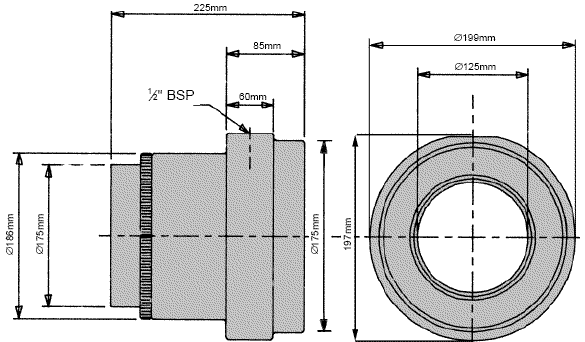

Standard Inlet Threads: 1/2" BSP
Options: 1/2" NPT
Please specify on order 1/2" NPTF

Bar Vol in m³ /min Vol out m³ /min
1.38 1.982 38.936
2.76 3.115 53.66
4.14 4.276 68.668
5.52 5.324 80.137






am125a
