StandardRange: Airmovers:
Group: Standard Fixed Gap
Product: AM75

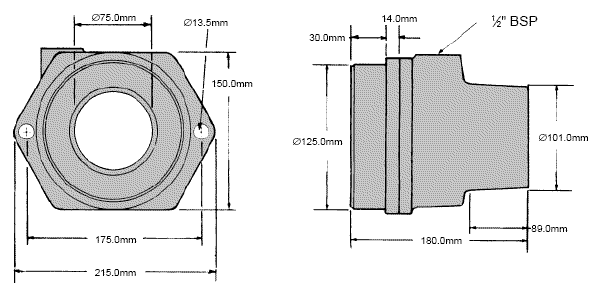

Technical details.

<< Back

Material: Zinc alloy
Weight: 2.7kg
Standard Gap: 0.05mm
DBA at: 5.5 bar is 80
Shims: Not required
Optional Extra
Standard Inlet Threads: 1/2" BSP
Options: 1/2" NPT
Please specify on order 1/2" NPTF

Bar Vol in m³ /min Vol out m³ /min
1.38 0.425 6.23
2.76 0.651 9.203
4.14 0.906 12.035
5.52 1.133 14.866






am75
