VortexRange: Airmovers:
Group: Vortex Tubes
Product: CG4AX

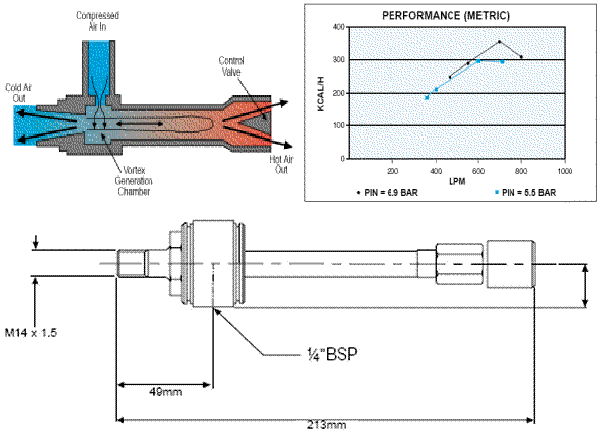

Technical details.

<< Back

Material: Stainless Steel
Weight: 1.5Kg
DBA at: 5.5 bar is 80
Optional Extra
Standard Inlet Threads: 1/4" BSP
Options: 1/4" NTP
Please specify on order 1/4" NPTF

Unit Supply Pressure BAR Air Consumption LPM Thermal Capacity KCAL/H Temp. Red's °C
#2 6.9 439 255 38
#4 6.9 499 283 34
#6 6.9 678 360 25
#8 6.9 857 318 16.4
#2 5.5 336 180 36
#4 5.5 392 217 33
#6 5.5 555 298 25
#8 5.5 698 285 16
