StandardRange: Airmovers:
Group: Standard Extractors Ventilators
Product: EV3

Technical details.

<< Back

Material: GRP
Weight: 0.71Kg
DBA at: 5.5 bar is 88
Takes 4" bore ducting
Optional Extra
Standard Inlet Threads: 1.2" BSP
Options: 1/2 NTP
Please specify on order 1/2" NPTF

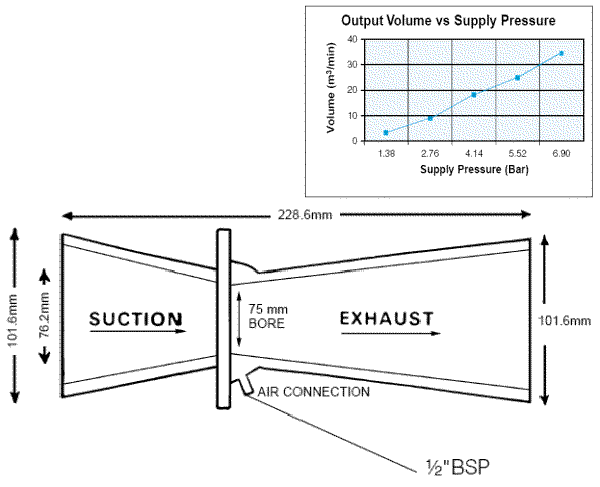

Bar Vol in m³ /min Vol out m³ /min
1.38 TBA 3.681
2.76 TBA 8.495
4.14 TBA 16.707
5.52 TBA 25.485
6.9 TBA 33.98





ev3
