H SeriesRange: Castor:
Group : H Series - Max Load (1500kg)

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

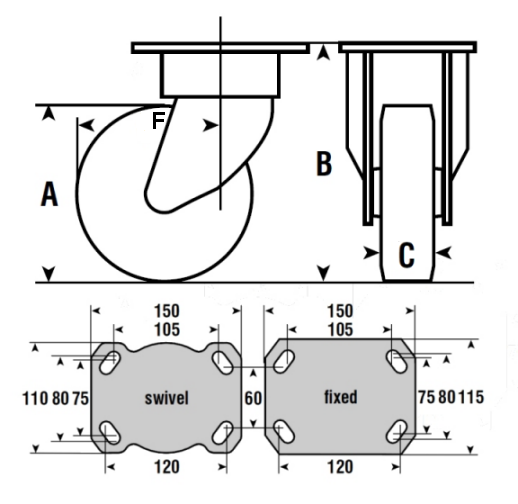

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
HS/H100/40BJ10015240102500BJ3.9

H100/40
HF/H100/40BJ10015240n/a500BJ3

H100/40
HS/H125/30BJ12517730118500BJ4

H125/30
HF/H125/30BJ12517730n/a500BJ3.1

H125/30
HS/H125/45BJ12517745118600BJ4.5

H125/45
HF/H125/45BJ12517745n/a600BJ3.6

H125/45
HS/H150/35BJ15020235134700BJ4.6

H150/35
HF/H150/35BJ15020235n/a700BJ3.7

H150/35
HS/H150/50BJ15020250134900BJ5.6

H150/50
HF/H150/50BJ15020250n/a900BJ4.7

H150/50
HS/H200/40BJ200252401661000BJ6.7

H200/40
HF/H200/40BJ20025240n/a1000BJ5.8

H200/40
HS/H250/45BJ250303452071200BJ9.8

H250/45
HF/H250/45BJ25030345n/a1200BJ8.9

H250/45
HS/H300/50BJ300353502451500BJ12.9

H300/50
HF/H300/50BJ30035350n/a1500BJ12

H300/50
H

When fitting at 120x60mm hole centres use 12mm diameter bolts
When fitting at 105x80/75mm hole centres use 10mm diameter bolts
Swivel top plate thickness 7mm
Fixed top plate thickness 6.5mm
For technical information covering load factors, etc., see Design Data
