AccessoriesRange: Clamp
Group: Accessories
Style: Setscrews

Click on Back to return to Product Group details.

<< Back

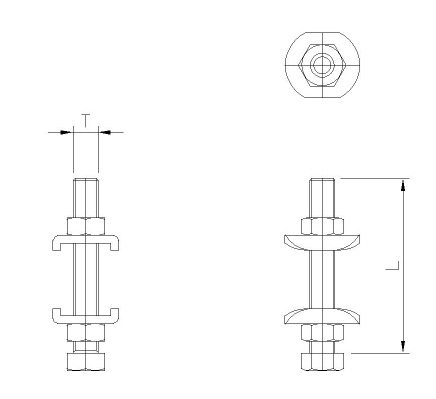

Part No Thread T Length L Fits Models - - - - - - - -
MB0420 M4 20 P50 - - - - - - - -
MB0520 M5 20 H50 - - - - - - - -
MB0535 M5 35 V75 H75 V100 CV75 V75X - - - - - - - -
MB0625 M6 25 P100 P250 P350 - - - - - - - -
MB0650 M6 50 V150 V200 H150 V150X - - - - - - - -
MB0840 M8 40 P200 P550 P600 P600LP600X - - - - - - - -
MB0860 M8 60 V250 V300 CV250 H250 V250X - - - - - - - -
MB1050 M10 50 P400 P450 P750 P1200 P1200L P1200X - - - - - - - -
MB1080 M10 80 V350 H350 CV350 - - - - - - - -
MB1250 M12 50 P2500 P2500L P2500X - - - - - - - -
MB12100 M12 100 V450 V450X H450 H700 VA700 VA1200 - - - - - - - -
MB1680 M16 80 P5000 P5000L - - - - - - - -
MB16150 M16 150 V550 VA2400 - - - - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
