AccessoriesRange: Clamp
Group: Accessories
Style: Neoprene Setscrew Covers

Click on Back to return to Product Group details.

<< Back

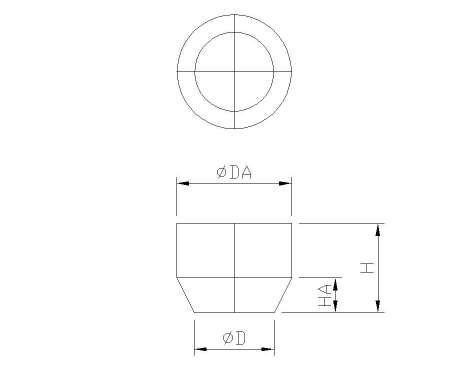

Part No H HA ØD ØDA Fits Screw - - - - - -
NC/04 8 4 7 11 MB0420 - - - - - -
NC/05 10 4 8 13 MB0525 MB0535 - - - - - -
NC/06 12 4 11 15 MB0650 - - - - - -
NC/08 15 6 13 19 MB0860 - - - - - -
NC/10 18 7 16 23 MB1080 - - - - - -
NC/12 20 7 19 26 MB1250 MB12100 - - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
