AccessoriesRange: Clamp
Group: Accessories
Style: Neoprene Tipped Spindles

Click on Back to return to Product Group details.

<< Back

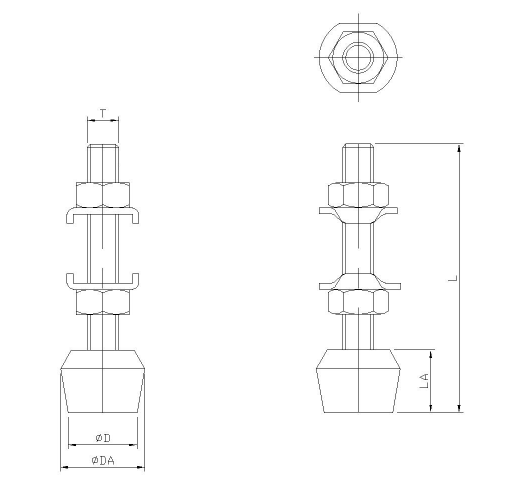

Part No Thread T Length L LA ØD ØDA Fits Clamp Models - - - - -
NTS0432 M4 32 9 8 11 P50 - - - - -
NTS0538 M5 38 10 10 13 H50 V75 H75 V100 CV75 V75X - - - - -
NTS0645 M6 45 13 12 16 V150 V200 H150 P100 P250 P350 - - - - -
NTS0865 M8 63 16 16 21 V250 V300 CV250 P200 P300 P550 P600 P600L P600X - - - - -
NTS1085 M10 86 20 22 27 V350 CV350 H350 P400 P450 P750 P1200 P1200L P1200X - - - - -
NTS12100 M12 100 24 24 30 V450 VA700 VA1200 H450 H700 V450X - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
