Positive LockingRange: Clamp
Group: Positive Locking
Style: Vertical Flanged Base

Click on Back to return to Product Group details.

<< Back

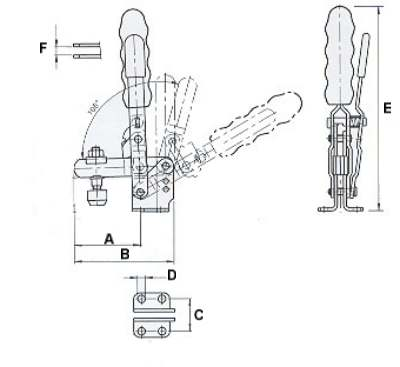

Part No Nominal force Weight (Kg) A B C D E F G H File
V250/2BLC 250daN 0.47 80 113 32 7.5 176 8 - -
V350/2BLC 350daN 0.69 100 140 45 8.5 230 10 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
