VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: Straight Base Loose

Click on Back to return to Product Group details.

<< Back

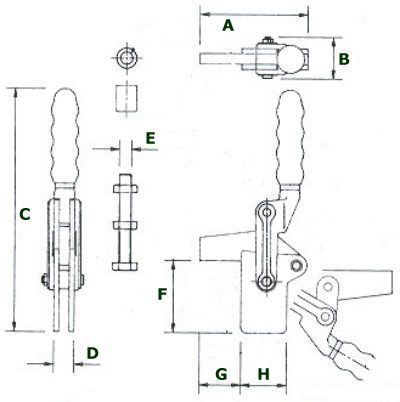

Part No Nominal force Weight (Kg) A B C D E F G H File
VA700/1A 700daN 1.1 104 43 235 20 M12x100 70 40 45
VA1200/1A 1200daN 1.8 124 48 276 24 M12x100 86 50 50
VA2400/1A 2400daN 3.75 163 62 318 32 M16x150 105 60 63 Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
