VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: Straight Base Adjustable

Click on Back to return to Product Group details.

<< Back

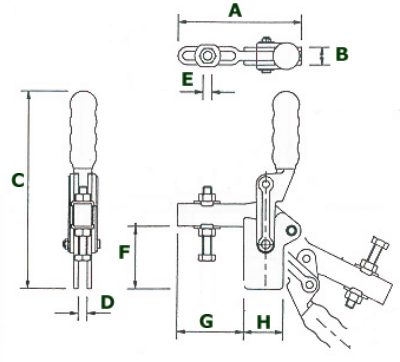

Part No Nominal force Weight (Kg) A B C D E F G H File
VA300/1B 300daN 0.25 84 12 136 6 M6x50 42 45 27
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
VA Heavy Duty Vertical
