VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: VA Heavy Duty Accessories

Click on Back to return to Product Group details.

<< Back

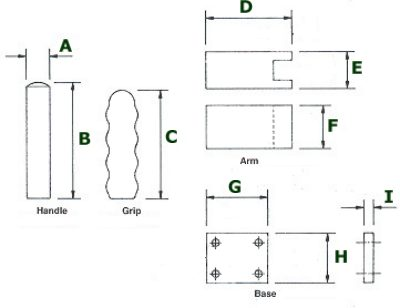

Part No A B C D E F G H I J File
VA300 Accs 12 47 54 60 12 16 37 30 5 - Zipped
VA700 Accs 19 90 94 58 20 25 50 40 8 - Zipped
VA1200 Accs 22 100 100 80 25 30 60 50 8 - Zipped
VA2400 Accs 25 100 100 100 30 35 70 65 8 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
