VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: Straight Base Solid Arm

Click on Back to return to Product Group details.

<< Back

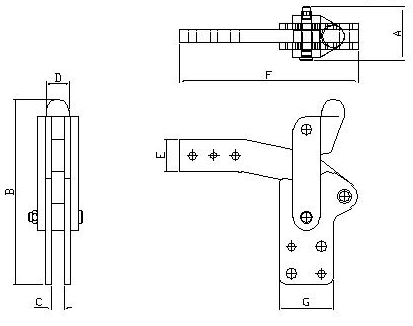

Part No Nominal force Weight (Kg) A B C D E F G H File
VA700TP 700daN 1.01 43 144 10 20 25 133 45 -
VA1200TP 1200daN 1.87 51 175 12 22 30 168 51 -
VA2400TP 2400daN 3.96 64 220 16 30 40 207 64 -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
