VerticalRange: Pneumatic Clamps:
Group: Vertical

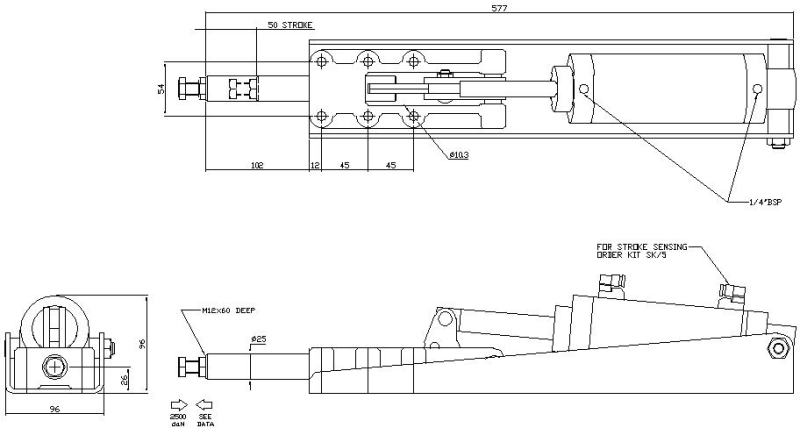

Product: P2500X

Click on Back to return to Product Group details.

<< Back

Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)
P2500X 2500 daN 2-6 bar (30-88 p.s.i.g.) 45 0.6L³ (36.6 cu. in.) 7.4
