VerticalRange: Pneumatic Clamps:
Group: Vertical

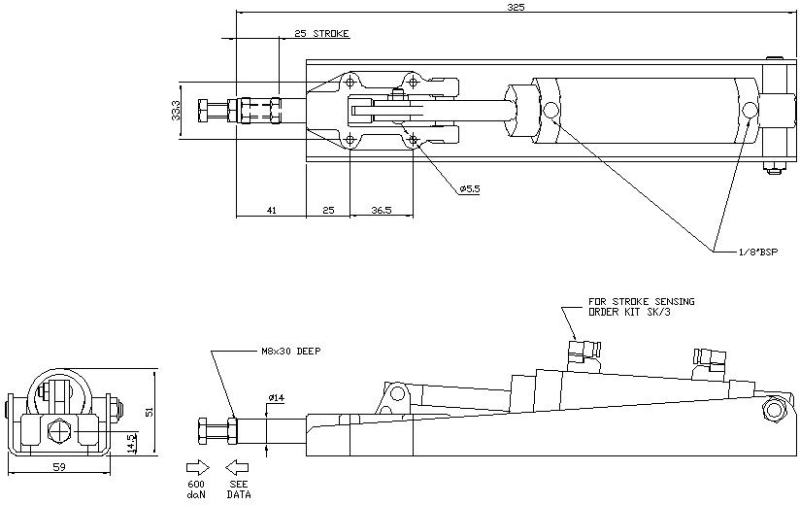

Product: P600X

Click on Back to return to Product Group details.

<< Back

Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)
P600X 600 daN 2-6 bar (30-88 p.s.i.g.) 60 0.09L³ (5.5cu. in.) 1.45
