SwingRange: Pneumatic Clamps:
Group: Swing

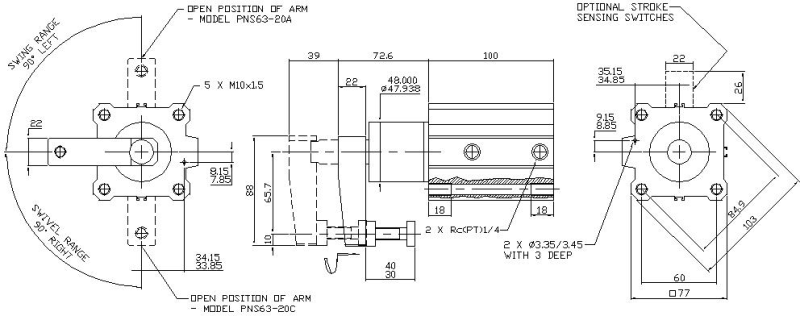

Product: PNS63-20C PNS63-20A

Click on Back to return to Product Group details.

<< Back

Part No Swing Max. Holding Force Operating Pressure Rotary Stroke Clamping Stroke Swept Volume Per Cycle Weight (kg)
PNS63-20C Clockwise 280 daN 2 - 10 bar 19mm 20mm 0.24L 1.87
PNS63-20A Anti-clockwise 280 daN 2 - 10 bar 19mm 20mm 0.24L 1.87
Swing
