VerticalRange: Pneumatic Clamps:
Group: Vertical

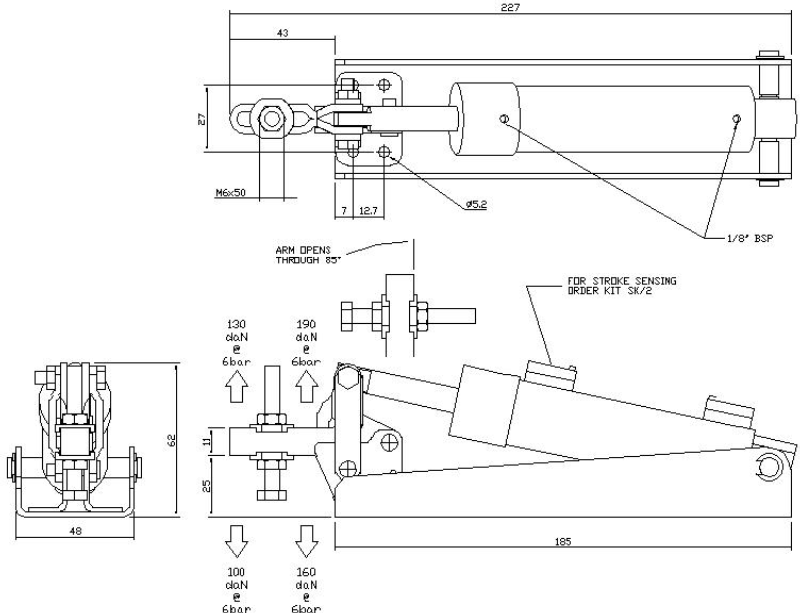

Product: V150X

Click on Back to return to Product Group details.

<< Back

Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)
V150X 150 daN 2-6 bar (30-88 p.s.i.g.) 60 0.04L³ (2.4 cu. in.) 0.65
Vertical
