PneumaticRange: Industrial Presses
Group: Pneumatic
Product:   PNDP1

Click on Back to return to Product Group details.

<< Back

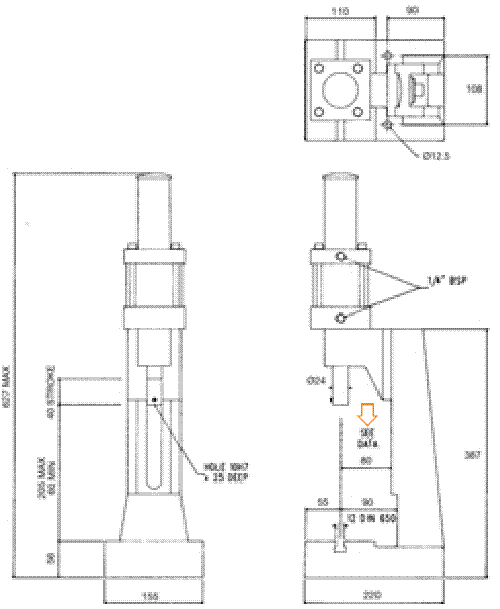

Capacity at 6 bar 2.5 kN
  150 kgf
Working Stroke 40 mm
Clearance 80 mm
Daulight 95-265 mm
Table Size 208x48 mm
T-Slot Width to DIN 650 12 mm
Ram Bore Diameter x Depth 12H7x25 mm
Ram Diameter 24 mm
Space Required 155x220 mm
Port Size ¼ R
Pneumatic
